Chemeleon-DNG in Practice: DNG and CSP for crystal generation¶

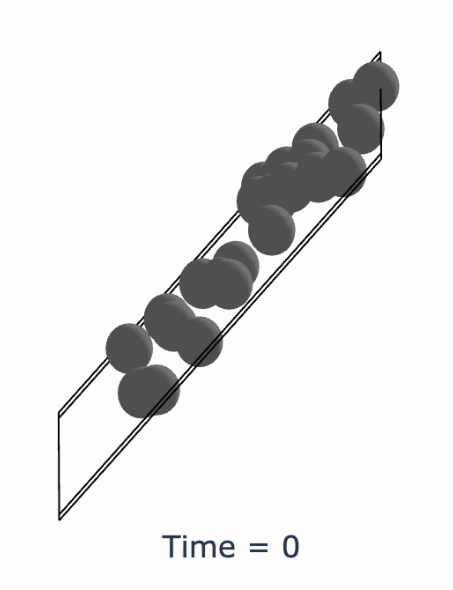

Chemeleon logo figure from the official repository Chemeleon trajectory gif from the official repository

Source: official Chemeleon repository assets assets/logo_static.jpg and assets/trajectory.gif: https://github.com/hspark1212/chemeleon

The main Chemeleon repository is text-guided, while this notebook focuses on the chemeleon-dng branch for DNG and CSP. These upstream visuals still help because they show the broader project identity and a real crystal-generation trajectory from the same model family.

This notebook follows the same scientific pattern as the MatterGen notebook, but the user-facing interface is different. Chemeleon-DNG exposes two explicit tasks: open-ended DNG and formula-conditioned CSP.

Where this fits in the course¶

diffusion-fundamentals.ipynb: the forward / reverse diffusion story is unchanged.
crystal-diffusion-from-scratch.ipynb: the crystal representation and screening logic should already feel familiar.
mattergen-crystals.ipynb: use that notebook as the reference point for scalar-property steering, then use this notebook to contrast task-oriented control.

Aims¶

install and run Chemeleon-DNG in a notebook-friendly way,
generate crystals in open-ended DNG mode,
steer DNG with different atom-count schedules,
generate formula-conditioned candidates with CSP,
compare conditioning and screening in a second modern crystal-generation workflow.

Learning outcomes¶

By the end you should be able to:

explain the difference between DNG and CSP,
identify which Chemeleon controls act during sampling and which diagnostics act after sampling,
compare formula-conditioned generation to MatterGen’s scalar-target workflow,
decide when a task-oriented toolkit is the better fit for a computational-chemistry question.

Primary sources and upstream code¶

This notebook is organized around the official Chemeleon resources:

Chemeleon repository and paper: https://github.com/hspark1212/chemeleon and https://www.nature.com/articles/s41467-025-59636-y
Chemeleon-DNG repository: https://github.com/hspark1212/chemeleon-dng
Chemeleon-DNG commit pinned in this notebook: 0d8da3a82a0c2211245a1b1394b599ca0545883c

The goal is not to retrain the model family. The goal is to understand how to run, inspect, and compare the two user-facing tasks in practice.

Table of Contents¶

Task for you

Before you run anything, write one sentence that distinguishes open-ended generation, sampling control, and explicit conditioning.
Keep comparing to mattergen-crystals.ipynb: what is the first question a user asks in each toolkit?
Decide ahead of time which Chemeleon task seems closer to the inverse-design problems you care about.

1) Setup¶

This section installs a clean chemeleon-dng environment and leaves the checkpoint download to the first real sampling call.

A small but important implementation detail: the notebook creates the Python environment in the system temporary directory rather than inside the repo. That avoids incomplete torch and numpy installs on mounted drives such as OneDrive, WSL bind mounts, and some Colab-backed filesystems.

What this setup cell does:

validates or reclones the chemeleon-dng repository,
checks out the pinned commit 0d8da3a82a0c,
creates a clean Python 3.11 environment in a temporary directory,
installs chemeleon-dng into that environment,
verifies that chemeleon_dng, numpy, and torch all import cleanly,
defines the helper functions used by the DNG and CSP demos below.

The first DNG or CSP sample will automatically download about $523\,\mathrm{{MB}}$ of pretrained checkpoints into chemeleon_dng_repo/ckpts/. Later runs reuse those files.

from pathlib import Path
import html
import os
import subprocess
import sys

DAY5_SOURCE_REPO_URL = "https://gitlab.com/cam-ml/tutorials.git"
DAY5_SOURCE_REPO_BRANCH = "main"
DAY5_COLAB_CLONE_CANDIDATES = [
    Path("/content/tutorials"),
    Path("/content/cam_ml_tutorials"),
    Path("/content/camml-tutorials"),
]


def _running_in_colab():
    try:
        import google.colab  # type: ignore
        return True
    except Exception:
        return False


def _unique_paths(paths):
    unique = []
    seen = set()
    for path in paths:
        path = Path(path)
        key = str(path)
        if key not in seen:
            seen.add(key)
            unique.append(path)
    return unique


def _iter_day5_search_roots():
    cwd = Path.cwd().resolve()
    roots = [cwd, *cwd.parents]
    for clone_dir in DAY5_COLAB_CLONE_CANDIDATES:
        roots.extend([clone_dir, clone_dir / "notebooks" / "05-generative"])
    return _unique_paths(roots)


def _register_day5_notebook_root(notebook_root: Path):
    notebook_root = notebook_root.resolve()
    if str(notebook_root) not in sys.path:
        sys.path.insert(0, str(notebook_root))
    try:
        os.chdir(notebook_root)
    except OSError:
        pass
    return notebook_root


def ensure_day5_helpers_on_path():
    for candidate in _iter_day5_search_roots():
        for notebook_root in (candidate, candidate / "notebooks" / "05-generative"):
            helper_dir = notebook_root / "gen_helpers"
            if helper_dir.exists():
                return _register_day5_notebook_root(notebook_root)

    if _running_in_colab():
        for clone_dir in DAY5_COLAB_CLONE_CANDIDATES:
            notebook_root = clone_dir / "notebooks" / "05-generative"
            if notebook_root.exists():
                return _register_day5_notebook_root(notebook_root)

        for clone_dir in DAY5_COLAB_CLONE_CANDIDATES:
            if clone_dir.exists():
                continue
            clone_dir.parent.mkdir(parents=True, exist_ok=True)
            print(
                "Cloning the Day 5 tutorial repo from "
                f"{DAY5_SOURCE_REPO_URL} into {clone_dir} so notebook helper modules are available..."
            )
            subprocess.run(
                [
                    "git",
                    "clone",
                    "--depth",
                    "1",
                    "--branch",
                    DAY5_SOURCE_REPO_BRANCH,
                    DAY5_SOURCE_REPO_URL,
                    str(clone_dir),
                ],
                check=True,
            )
            notebook_root = clone_dir / "notebooks" / "05-generative"
            if notebook_root.exists():
                return _register_day5_notebook_root(notebook_root)

        raise FileNotFoundError(
            "Could not find or clone notebooks/05-generative inside /content for this Colab session."
        )

    raise FileNotFoundError(
        "Could not locate notebooks/05-generative/gen_helpers. If you are in Colab, rerun this cell so the repo can be cloned automatically."
    )

GEN_HELPERS_ROOT = ensure_day5_helpers_on_path()

try:
    import ipywidgets as widgets
except Exception:
    widgets = None

try:
    import google.colab  # type: ignore
    IN_COLAB = True
except Exception:
    IN_COLAB = False

from IPython.display import display

from gen_helpers.discovery_workflow import (
    build_generated_pd_entries,
    build_relaxation_rows,
    fetch_mp_entries_for_chemsys,
    get_valid_compositions,
    plot_phase_diagram_with_generated,
    relax_atoms_with_mace,
    show_before_after_relaxation,
    summarize_generated_stability,
)
from gen_helpers.chemeleon_helpers import (
    analyze_csp_samples,
    analyze_dng_runs,
    render_rank_table,
    sample_chemeleon_dng as _sample_chemeleon_dng,
    setup_chemeleon_dng_environment,
    show_atoms_gallery,
)

chemeleon_env = setup_chemeleon_dng_environment()
notebook_root = chemeleon_env["notebook_root"]
CHEMELEON_DNG_REPO = chemeleon_env["repo_dir"]
CHEMELEON_DNG_OUT = chemeleon_env["output_dir"]
CHEMELEON_DNG_VENV = chemeleon_env["venv_dir"]
CHEMELEON_DNG_PYTHON = chemeleon_env["python_path"]
CHEMELEON_DNG_CLI = chemeleon_env["cli_path"]
CHEMELEON_DNG_DEVICE = chemeleon_env["device"]
CHEMELEON_DNG_DEMO_TIMESTEPS = chemeleon_env["demo_timesteps"]
CHEMELEON_DNG_COMMIT = chemeleon_env["pinned_commit"]
CHEMELEON_DNG_CHECKPOINT_DATASET = 'alex_mp_20'
CHEMELEON_DNG_PRIOR_NAME = 'mp-20'
CHEMELEON_DNG_ALEX_MP20_MODEL_PATH = 'ckpts/chemeleon_dng_alex_mp_20_v0.0.2.ckpt'
CHEMELEON_CSP_ALEX_MP20_MODEL_PATH = 'ckpts/chemeleon_csp_alex_mp_20_v0.0.2.ckpt'


def sample_chemeleon_dng(**kwargs):
    return _sample_chemeleon_dng(chemeleon_env, **kwargs)


def format_widget_pre(text: str) -> str:
    return f"<pre style='white-space:pre-wrap; margin:0'>{html.escape(text)}</pre>"


def bind_widget_state(controls, apply_fn):
    state_holder = {"has_rendered": False, "last": None}

    def refresh(change=None):
        state = {name: control.value for name, control in controls.items()}
        state_key = tuple((name, repr(value)) for name, value in state.items())
        if state_holder["has_rendered"] and state_holder["last"] == state_key:
            return
        state_holder["has_rendered"] = True
        state_holder["last"] = state_key
        apply_fn(**state)

    refresh()
    for control in controls.values():
        control.observe(refresh, names='value')
    return refresh

2) How it works¶

Chemeleon-DNG exposes one diffusion backbone through two user-facing tasks: DNG and CSP.

Shared backbone¶

At the model level, both tasks follow the same core recipe:

represent a crystal by atom identities, fractional coordinates, and lattice information,
corrupt that representation step by step,
train a denoiser to reverse the corruption,
sample by iteratively denoising from a simple starting distribution.

Where the control enters¶

DNG: no target formula is provided. The main control shown here is the atom-count distribution, which biases the search toward smaller or larger cells.
CSP: the target formula is fixed before sampling. The model then searches for plausible structures consistent with that chemistry.

Comparison with MatterGen¶

MatterGen keeps the same raw-crystal viewpoint but adds scalar-property steering.
Chemeleon-DNG keeps the diffusion backbone but reorganizes the workflow around task choice.
That means the first user question changes:
- MatterGen: what scalar target do I want?
- Chemeleon-DNG: do I want open-ended discovery or fixed-formula search?

Quick check: what is shared between DNG and CSP, and what changes?
Answer
They share the same broad diffusion backbone for denoising crystal representations. What changes is the conditioning interface: DNG is open-ended and uses schedule steering, while CSP conditions on a target formula.

Dataset note¶

Chemeleon-DNG provides checkpoints trained on both mp-20 and alex_mp_20. In this notebook we explicitly use the alex_mp_20 DNG and CSP checkpoints. For the open-ended DNG runs, however, the current repo only ships one built-in atom-count prior in NUM_ATOM_DISTRIBUTIONS, keyed as mp-20. So the DNG demos below use the alex_mp_20 checkpoint together with the repo’s available mp-20 atom-count prior. The repo also notes that these checkpoints use a reduced 256-step diffusion process for faster inference. So when you judge the generated samples, it is worth remembering that the prior still comes from a small-cell inorganic crystal dataset, not from the full text-guided mp-40 setup described in the main Chemeleon repository.

3) DNG quickstart: generate crystals from scratch¶

We start Chemeleon-DNG with the purest task: de novo generation.

This first call still plays two roles:

it checks that the repo-local Chemeleon-DNG environment is working,
and it gives us a baseline DNG batch before we start steering the atom-count schedule in the next section.

What to notice¶

DNG does not need a target formula.
The first call may still download checkpoints if ckpts/ is empty.
The notebook uses a reduced demo-length reverse process so this quickstart stays practical on CPU.
After the quickstart batch, we can ask a more interesting question: how much can we move the output distribution by changing the atom-count schedule?

from ase.io import read

CHEMELEON_DNG_QUICKSTART_NUM_SAMPLES = int(globals().get("CHEMELEON_DNG_QUICKSTART_NUM_SAMPLES", 8))  # @param {type:"integer"}
CHEMELEON_DNG_QUICKSTART_BATCH_SIZE = int(globals().get("CHEMELEON_DNG_QUICKSTART_BATCH_SIZE", 8))  # @param {type:"integer"}
CHEMELEON_DNG_QUICKSTART_REUSE_EXISTING = globals().get("CHEMELEON_DNG_QUICKSTART_REUSE_EXISTING", True)  # @param {type:"boolean"}


def _chemeleon_quickstart_summary() -> str:
    lines = [
        "Chemeleon-DNG quickstart settings:",
        f"  num_samples: {CHEMELEON_DNG_QUICKSTART_NUM_SAMPLES}",
        f"  batch_size: {CHEMELEON_DNG_QUICKSTART_BATCH_SIZE}",
        f"  atom-count prior: {CHEMELEON_DNG_PRIOR_NAME}",
        f"  checkpoint dataset: {CHEMELEON_DNG_CHECKPOINT_DATASET}",
        f"  checkpoint: {CHEMELEON_DNG_ALEX_MP20_MODEL_PATH}",
        f"  reuse_existing: {CHEMELEON_DNG_QUICKSTART_REUSE_EXISTING}",
    ]
    if not IN_COLAB and widgets is not None:
        lines.append("Adjust the widgets, then rerun this cell to resample the DNG quickstart batch.")
    return "\n".join(lines)


def _apply_chemeleon_quickstart_controls(num_samples, batch_size, reuse_existing, announce: bool = True):
    global CHEMELEON_DNG_QUICKSTART_NUM_SAMPLES, CHEMELEON_DNG_QUICKSTART_BATCH_SIZE, CHEMELEON_DNG_QUICKSTART_REUSE_EXISTING
    CHEMELEON_DNG_QUICKSTART_NUM_SAMPLES = int(num_samples)
    CHEMELEON_DNG_QUICKSTART_BATCH_SIZE = int(batch_size)
    CHEMELEON_DNG_QUICKSTART_REUSE_EXISTING = bool(reuse_existing)
    summary = _chemeleon_quickstart_summary()
    if announce:
        print(summary)
    return summary


if IN_COLAB or widgets is None:
    print(
        _apply_chemeleon_quickstart_controls(
            CHEMELEON_DNG_QUICKSTART_NUM_SAMPLES,
            CHEMELEON_DNG_QUICKSTART_BATCH_SIZE,
            CHEMELEON_DNG_QUICKSTART_REUSE_EXISTING,
            announce=False,
        )
    )
    if not IN_COLAB and widgets is None:
        print("Install `ipywidgets` to get Jupyter controls for this cell.")
else:
    quickstart_samples_widget = widgets.BoundedIntText(
        value=CHEMELEON_DNG_QUICKSTART_NUM_SAMPLES,
        min=1,
        max=16,
        description="Samples:",
        style={"description_width": "70px"},
        layout=widgets.Layout(width="200px"),
    )
    quickstart_batch_widget = widgets.BoundedIntText(
        value=CHEMELEON_DNG_QUICKSTART_BATCH_SIZE,
        min=1,
        max=16,
        description="Batch size:",
        style={"description_width": "70px"},
        layout=widgets.Layout(width="200px"),
    )
    quickstart_reuse_widget = widgets.Checkbox(
        value=bool(CHEMELEON_DNG_QUICKSTART_REUSE_EXISTING),
        description="Reuse existing CIFs",
    )
    quickstart_help = widgets.HTML(
        "<small>In Jupyter, update the controls below and rerun this cell to resample the DNG quickstart batch.</small>"
    )
    quickstart_status = widgets.HTML()
    display(
        widgets.VBox(
            [
                widgets.HBox([quickstart_samples_widget, quickstart_batch_widget]),
                quickstart_reuse_widget,
                quickstart_help,
                quickstart_status,
            ]
        )
    )

    def _refresh_chemeleon_quickstart(num_samples, batch_size, reuse_existing):
        quickstart_status.value = format_widget_pre(
            _apply_chemeleon_quickstart_controls(num_samples, batch_size, reuse_existing, announce=False)
        )

    bind_widget_state(
        {
            "num_samples": quickstart_samples_widget,
            "batch_size": quickstart_batch_widget,
            "reuse_existing": quickstart_reuse_widget,
        },
        _refresh_chemeleon_quickstart,
    )

_apply_chemeleon_quickstart_controls(
    CHEMELEON_DNG_QUICKSTART_NUM_SAMPLES,
    CHEMELEON_DNG_QUICKSTART_BATCH_SIZE,
    CHEMELEON_DNG_QUICKSTART_REUSE_EXISTING,
    announce=False,
)
dng_output_dir = CHEMELEON_DNG_OUT / "dng_quickstart"
dng_cif_paths = sample_chemeleon_dng(
    task="dng",
    num_samples=CHEMELEON_DNG_QUICKSTART_NUM_SAMPLES,
    batch_size=CHEMELEON_DNG_QUICKSTART_BATCH_SIZE,
    output_dir=dng_output_dir,
    device=CHEMELEON_DNG_DEVICE,
    num_atom_distribution=CHEMELEON_DNG_PRIOR_NAME,
    model_path=CHEMELEON_DNG_ALEX_MP20_MODEL_PATH,
    reuse_existing=CHEMELEON_DNG_QUICKSTART_REUSE_EXISTING,
)
dng_atoms_list = [read(path) for path in dng_cif_paths]
print("Generated:", len(dng_atoms_list), "structures")
for i, atoms in enumerate(dng_atoms_list[:5]):
    print(f"  sample {i}: {atoms.get_chemical_formula()} | {len(atoms)} atoms | volume={atoms.get_volume():.1f} A^3")
show_atoms_gallery(
    dng_atoms_list,
    "Chemeleon-DNG quickstart batch",
    CHEMELEON_DNG_OUT / "dng_quickstart_gallery.png",
    subtitles=[
        f"{atoms.get_chemical_formula()} | {len(atoms)} atoms | volume={atoms.get_volume():.1f} A^3"
        for atoms in dng_atoms_list
    ],
    columns=4,
)

Task for you

Before the DNG steering plots appear, predict which statistic should respond most directly to the atom-count schedule.
Before the CSP analysis, guess which is easier to verify from raw outputs: a scalar target or a formula target.
Keep separating three ideas in your notes: task, conditioning, screening.

4) DNG steering and output analysis¶

Now we go beyond the default DNG call and use one of the real control knobs that Chemeleon-DNG exposes: the atom-count distribution.

We compare three DNG settings:

the default mp-20 atom-count prior shipped in the repo,
a small-cell schedule,
a large-cell schedule.

This is not property conditioning in the MatterGen sense, but it is a genuine sampling control. It is useful whenever you want to bias the search toward smaller or larger unit cells before doing any downstream screening.

This section also reuses the baseline DNG quickstart samples if they already exist on disk, so you can rerun the steering study without needing the earlier quickstart variable state to still be alive in memory.

What to notice¶

The atom-count schedule should move the n_sites distribution directly.
That in turn often changes volume and formula diversity.
This is a good example of a practical generative control that is easy to explain and easy to verify.
The most useful comparison is the distribution shift across steering settings, not any single candidate in isolation.

Quick check: what is the model control you are actually changing in this DNG steering study?
Answer
You are changing the distribution of the requested number of atoms per generated cell. That is a direct sampling control, and it should show up most clearly in the n_sites and volume statistics.

from ase.io import read

CHEMELEON_DNG_CHECKPOINT_DATASET = globals().get('CHEMELEON_DNG_CHECKPOINT_DATASET', 'alex_mp_20')
CHEMELEON_DNG_PRIOR_NAME = globals().get('CHEMELEON_DNG_PRIOR_NAME', 'mp-20')
CHEMELEON_DNG_ALEX_MP20_MODEL_PATH = globals().get('CHEMELEON_DNG_ALEX_MP20_MODEL_PATH', 'ckpts/chemeleon_dng_alex_mp_20_v0.0.2.ckpt')

CHEMELEON_DNG_SMALL_SCHEDULE_TEXT = globals().get('CHEMELEON_DNG_SMALL_SCHEDULE_TEXT', '6, 6, 7')  # @param {type:"string"}
CHEMELEON_DNG_LARGE_SCHEDULE_TEXT = globals().get('CHEMELEON_DNG_LARGE_SCHEDULE_TEXT', '14, 14, 16')  # @param {type:"string"}
CHEMELEON_DNG_STEERING_REUSE_EXISTING = globals().get('CHEMELEON_DNG_STEERING_REUSE_EXISTING', True)  # @param {type:"boolean"}


def _parse_chemeleon_schedule(text: str, label: str):
    items = [item.strip() for item in str(text).split(',') if item.strip()]
    if not items:
        raise ValueError(f'{label} schedule cannot be empty.')
    schedule = [int(item) for item in items]
    if any(value <= 0 for value in schedule):
        raise ValueError(f'{label} schedule must contain positive integers only.')
    return schedule


def _chemeleon_steering_summary() -> str:
    lines = [
        'Chemeleon-DNG steering settings:',
        f'  small-cell schedule: {CHEMELEON_DNG_SMALL_SCHEDULE}',
        f'  large-cell schedule: {CHEMELEON_DNG_LARGE_SCHEDULE}',
        f'  baseline prior: {CHEMELEON_DNG_PRIOR_NAME}',
        f'  checkpoint dataset: {CHEMELEON_DNG_CHECKPOINT_DATASET}',
        f'  checkpoint: {CHEMELEON_DNG_ALEX_MP20_MODEL_PATH}',
        f'  reuse_existing: {CHEMELEON_DNG_STEERING_REUSE_EXISTING}',
    ]
    if not IN_COLAB and widgets is not None:
        lines.append('Adjust the schedules, then rerun this cell to regenerate the steering comparison.')
    return '\n'.join(lines)


def _apply_chemeleon_steering_controls(small_text, large_text, reuse_existing, announce: bool = True):
    global CHEMELEON_DNG_SMALL_SCHEDULE_TEXT, CHEMELEON_DNG_LARGE_SCHEDULE_TEXT
    global CHEMELEON_DNG_SMALL_SCHEDULE, CHEMELEON_DNG_LARGE_SCHEDULE, CHEMELEON_DNG_STEERING_REUSE_EXISTING
    CHEMELEON_DNG_SMALL_SCHEDULE_TEXT = str(small_text)
    CHEMELEON_DNG_LARGE_SCHEDULE_TEXT = str(large_text)
    CHEMELEON_DNG_SMALL_SCHEDULE = _parse_chemeleon_schedule(CHEMELEON_DNG_SMALL_SCHEDULE_TEXT, 'small-cell')
    CHEMELEON_DNG_LARGE_SCHEDULE = _parse_chemeleon_schedule(CHEMELEON_DNG_LARGE_SCHEDULE_TEXT, 'large-cell')
    CHEMELEON_DNG_STEERING_REUSE_EXISTING = bool(reuse_existing)
    summary = _chemeleon_steering_summary()
    if announce:
        print(summary)
    return summary


if IN_COLAB or widgets is None:
    print(_apply_chemeleon_steering_controls(CHEMELEON_DNG_SMALL_SCHEDULE_TEXT, CHEMELEON_DNG_LARGE_SCHEDULE_TEXT, CHEMELEON_DNG_STEERING_REUSE_EXISTING, announce=False))
    if not IN_COLAB and widgets is None:
        print('Install `ipywidgets` to get Jupyter controls for this cell.')
else:
    small_schedule_widget = widgets.Text(value=str(CHEMELEON_DNG_SMALL_SCHEDULE_TEXT), description='Small:', style={'description_width': '70px'}, layout=widgets.Layout(width='320px'))
    large_schedule_widget = widgets.Text(value=str(CHEMELEON_DNG_LARGE_SCHEDULE_TEXT), description='Large:', style={'description_width': '70px'}, layout=widgets.Layout(width='320px'))
    steering_reuse_widget = widgets.Checkbox(value=bool(CHEMELEON_DNG_STEERING_REUSE_EXISTING), description='Reuse existing CIFs')
    steering_help = widgets.HTML('<small>Use comma-separated atom counts. The schedule length sets how many samples are generated in each steering run.</small>')
    steering_status = widgets.HTML()
    display(widgets.VBox([widgets.HBox([small_schedule_widget, large_schedule_widget]), steering_reuse_widget, steering_help, steering_status]))

    def _refresh_chemeleon_steering(small_text, large_text, reuse_existing):
        steering_status.value = format_widget_pre(
            _apply_chemeleon_steering_controls(small_text, large_text, reuse_existing, announce=False)
        )

    bind_widget_state(
        {'small_text': small_schedule_widget, 'large_text': large_schedule_widget, 'reuse_existing': steering_reuse_widget},
        _refresh_chemeleon_steering,
    )

_apply_chemeleon_steering_controls(CHEMELEON_DNG_SMALL_SCHEDULE_TEXT, CHEMELEON_DNG_LARGE_SCHEDULE_TEXT, CHEMELEON_DNG_STEERING_REUSE_EXISTING, announce=False)
if 'dng_atoms_list' not in globals() or not dng_atoms_list:
    baseline_num_samples = int(globals().get('CHEMELEON_DNG_QUICKSTART_NUM_SAMPLES', 8))
    baseline_batch_size = int(globals().get('CHEMELEON_DNG_QUICKSTART_BATCH_SIZE', baseline_num_samples))
    baseline_reuse_existing = bool(globals().get('CHEMELEON_DNG_QUICKSTART_REUSE_EXISTING', True))
    baseline_output_dir = CHEMELEON_DNG_OUT / 'dng_quickstart'
    baseline_cif_paths = sample_chemeleon_dng(
        task='dng',
        num_samples=baseline_num_samples,
        batch_size=baseline_batch_size,
        output_dir=baseline_output_dir,
        device=CHEMELEON_DNG_DEVICE,
        num_atom_distribution=CHEMELEON_DNG_PRIOR_NAME,
        model_path=CHEMELEON_DNG_ALEX_MP20_MODEL_PATH,
        reuse_existing=baseline_reuse_existing,
    )
    dng_atoms_list = [read(path) for path in baseline_cif_paths]
    print(f'Loaded {len(dng_atoms_list)} baseline DNG structures for comparison')

dng_small_output_dir = CHEMELEON_DNG_OUT / 'dng_small_cells'
dng_large_output_dir = CHEMELEON_DNG_OUT / 'dng_large_cells'
dng_small_cif_paths = sample_chemeleon_dng(task='dng', num_samples=len(CHEMELEON_DNG_SMALL_SCHEDULE), batch_size=len(CHEMELEON_DNG_SMALL_SCHEDULE), output_dir=dng_small_output_dir, device=CHEMELEON_DNG_DEVICE, num_atom_distribution=CHEMELEON_DNG_SMALL_SCHEDULE, model_path=CHEMELEON_DNG_ALEX_MP20_MODEL_PATH, reuse_existing=CHEMELEON_DNG_STEERING_REUSE_EXISTING)
dng_large_cif_paths = sample_chemeleon_dng(task='dng', num_samples=len(CHEMELEON_DNG_LARGE_SCHEDULE), batch_size=len(CHEMELEON_DNG_LARGE_SCHEDULE), output_dir=dng_large_output_dir, device=CHEMELEON_DNG_DEVICE, num_atom_distribution=CHEMELEON_DNG_LARGE_SCHEDULE, model_path=CHEMELEON_DNG_ALEX_MP20_MODEL_PATH, reuse_existing=CHEMELEON_DNG_STEERING_REUSE_EXISTING)
dng_run_atoms = {'baseline_prior': dng_atoms_list, 'small_cells': [read(path) for path in dng_small_cif_paths], 'large_cells': [read(path) for path in dng_large_cif_paths]}
dng_run_titles = {'baseline_prior': 'Default mp-20 prior with alex checkpoint', 'small_cells': 'Small-cell schedule', 'large_cells': 'Large-cell schedule'}
dng_colors = {'baseline_prior': '#7aa2f7', 'small_cells': '#9ece6a', 'large_cells': '#f7768e'}
dng_analysis = analyze_dng_runs(dng_run_atoms, dng_run_titles, CHEMELEON_DNG_OUT, colors=dng_colors)
dng_rows = dng_analysis['rows']
dng_shift_rows = dng_analysis['shift_rows']
dng_sorted_by_n_sites = dng_analysis['sorted_by_n_sites']
render_rank_table(
    'How the DNG steering schedules shift the generated distribution',
    dng_shift_rows,
    ['setting', 'mean_n_sites', 'delta_mean_n_sites', 'mean_volume', 'delta_mean_volume', 'unique_formulas'],
)

5) CSP quickstart: formula-conditioned generation¶

Now we switch from open-ended DNG to the explicitly conditioned Chemeleon-DNG task.

Here the condition is a target formula, so the chemistry is fixed and the model only has to infer plausible crystal structures for that composition.

What to notice¶

This is the cleanest Chemeleon-DNG example of conditional generation.
Unlike MatterGen’s scalar band-gap target, a formula condition is easy to verify directly from the output stoichiometry.
The natural application is formula screening: pick one or two candidate chemistries, generate several structures for each, then rank them with cheap diagnostics before doing more expensive physics.

Quick check: why is CSP a stronger demonstration of conditioning than a single DNG run?
Answer
Because the condition is explicit and verifiable. You can directly check whether the generated structures respect the requested composition and whether different formulas occupy different structural regimes.

from ase.io import read

CHEMELEON_CSP_TARGETS_TEXT = globals().get('CHEMELEON_CSP_TARGETS_TEXT', 'NaCl, LiMnO2')  # @param {type:"string"}
CSP_SAMPLES_PER_FORMULA = int(globals().get('CSP_SAMPLES_PER_FORMULA', 2))  # @param {type:"integer"}
CHEMELEON_CSP_BATCH_SIZE = int(globals().get('CHEMELEON_CSP_BATCH_SIZE', 2))  # @param {type:"integer"}
CHEMELEON_CSP_REUSE_EXISTING = globals().get('CHEMELEON_CSP_REUSE_EXISTING', True)  # @param {type:"boolean"}


def _parse_csp_targets(text: str):
    targets = [item.strip() for item in str(text).split(',') if item.strip()]
    if not targets:
        raise ValueError('Provide at least one CSP target formula.')
    return targets


def _chemeleon_csp_summary() -> str:
    lines = [
        'Chemeleon-DNG CSP settings:',
        f'  formulas: {csp_targets}',
        f'  samples_per_formula: {CSP_SAMPLES_PER_FORMULA}',
        f'  batch_size: {CHEMELEON_CSP_BATCH_SIZE}',
        f'  checkpoint: {CHEMELEON_CSP_ALEX_MP20_MODEL_PATH}',
        f'  reuse_existing: {CHEMELEON_CSP_REUSE_EXISTING}',
    ]
    if not IN_COLAB and widgets is not None:
        lines.append('Adjust the widgets, then rerun this cell to launch a new CSP comparison.')
    return '\n'.join(lines)


def _apply_chemeleon_csp_controls(targets_text, samples_per_formula, batch_size, reuse_existing, announce: bool = True):
    global CHEMELEON_CSP_TARGETS_TEXT, csp_targets, CSP_SAMPLES_PER_FORMULA
    global CHEMELEON_CSP_BATCH_SIZE, CHEMELEON_CSP_REUSE_EXISTING
    CHEMELEON_CSP_TARGETS_TEXT = str(targets_text)
    csp_targets = _parse_csp_targets(CHEMELEON_CSP_TARGETS_TEXT)
    CSP_SAMPLES_PER_FORMULA = int(samples_per_formula)
    CHEMELEON_CSP_BATCH_SIZE = int(batch_size)
    CHEMELEON_CSP_REUSE_EXISTING = bool(reuse_existing)
    summary = _chemeleon_csp_summary()
    if announce:
        print(summary)
    return summary


if IN_COLAB or widgets is None:
    print(_apply_chemeleon_csp_controls(CHEMELEON_CSP_TARGETS_TEXT, CSP_SAMPLES_PER_FORMULA, CHEMELEON_CSP_BATCH_SIZE, CHEMELEON_CSP_REUSE_EXISTING, announce=False))
    if not IN_COLAB and widgets is None:
        print('Install `ipywidgets` to get Jupyter controls for this cell.')
else:
    csp_targets_widget = widgets.Text(value=str(CHEMELEON_CSP_TARGETS_TEXT), description='Formulas:', style={'description_width': '70px'}, layout=widgets.Layout(width='360px'))
    csp_samples_widget = widgets.BoundedIntText(value=CSP_SAMPLES_PER_FORMULA, min=1, max=8, description='Samples:', style={'description_width': '70px'}, layout=widgets.Layout(width='200px'))
    csp_batch_widget = widgets.BoundedIntText(value=CHEMELEON_CSP_BATCH_SIZE, min=1, max=8, description='Batch size:', style={'description_width': '70px'}, layout=widgets.Layout(width='200px'))
    csp_reuse_widget = widgets.Checkbox(value=bool(CHEMELEON_CSP_REUSE_EXISTING), description='Reuse existing CIFs')
    csp_help = widgets.HTML('<small>Use comma-separated formulas. Update the controls below and rerun this cell to regenerate the CSP galleries.</small>')
    csp_status = widgets.HTML()
    display(widgets.VBox([widgets.HBox([csp_targets_widget, csp_samples_widget, csp_batch_widget]), csp_reuse_widget, csp_help, csp_status]))

    def _refresh_chemeleon_csp(targets_text, samples_per_formula, batch_size, reuse_existing):
        csp_status.value = format_widget_pre(
            _apply_chemeleon_csp_controls(targets_text, samples_per_formula, batch_size, reuse_existing, announce=False)
        )

    bind_widget_state(
        {'targets_text': csp_targets_widget, 'samples_per_formula': csp_samples_widget, 'batch_size': csp_batch_widget, 'reuse_existing': csp_reuse_widget},
        _refresh_chemeleon_csp,
    )

_apply_chemeleon_csp_controls(CHEMELEON_CSP_TARGETS_TEXT, CSP_SAMPLES_PER_FORMULA, CHEMELEON_CSP_BATCH_SIZE, CHEMELEON_CSP_REUSE_EXISTING, announce=False)
csp_samples = {}
for formula in csp_targets:
    out_dir = CHEMELEON_DNG_OUT / f'csp_{formula.lower()}'
    cif_paths = sample_chemeleon_dng(task='csp', formulas=[formula], num_samples=CSP_SAMPLES_PER_FORMULA, batch_size=CHEMELEON_CSP_BATCH_SIZE, output_dir=out_dir, device=CHEMELEON_DNG_DEVICE, model_path=CHEMELEON_CSP_ALEX_MP20_MODEL_PATH, reuse_existing=CHEMELEON_CSP_REUSE_EXISTING)
    atoms_list = [read(path) for path in cif_paths]
    csp_samples[formula] = atoms_list
    print(f'{formula}: {len(atoms_list)} structures')
    show_atoms_gallery(atoms_list, f'Chemeleon-DNG CSP: {formula}', CHEMELEON_DNG_OUT / f'csp_{formula.lower()}_gallery.png', subtitles=[f"{atoms.get_chemical_formula()} | {len(atoms)} atoms | volume={atoms.get_volume():.1f} Å³" for atoms in atoms_list])

6) CSP conditioning shifts, galleries, and screening¶

Once we have multiple CSP samples per formula, the notebook can do more than show one gallery. We can compare how the target chemistry changes formula-match fraction, volume, and atom-count distributions, then rank the outputs as a tiny formula-conditioned discovery workflow.

What to notice¶

Formula conditioning should separate the outputs into different structural regions.
The same cheap screening ideas from the MatterGen section still apply here, but now formula-match fraction is the most direct check of conditioning success.
Ranking the matching and off-target candidates separately is more informative than collapsing everything onto one generic structural proxy.
These plots tell you whether the chemistry was respected; they do not replace relaxation or stability analysis.

Quick check: what is the conceptual difference between conditioning and screening in this CSP workflow?
Answer
Conditioning tells the generator what chemistry to realize. Screening happens afterward, when you compute simple statistics such as formula-match fraction, atom count, or volume to decide which generated candidates deserve closer study.

csp_analysis = analyze_csp_samples(csp_samples, csp_targets, CHEMELEON_DNG_OUT)
csp_rows = csp_analysis["rows"]
csp_summary_rows = csp_analysis["summary_rows"]
csp_matching_rows = csp_analysis["matching_rows"]
csp_mismatched_rows = csp_analysis["mismatched_rows"]

render_rank_table(
    'How strongly did the CSP formulas separate the generated samples?',
    csp_summary_rows,
    ['formula_target', 'formula_match_fraction', 'mean_n_sites', 'mean_volume'],
)

Optional: relaxation and stability triage¶

Like in mattergen-crystals.ipynb, we don’t have to stop at generation. Take a small CSP shortlist, relax it with MACE + TorchSim, then compare those relaxed candidates against a Materials Project phase diagram.

Why does this fit Chemeleon especially well?

CSP fixes the composition, so all shortlisted candidates belong to one clean chemical system.
That makes phase-diagram analysis much easier than for MatterGen.

!python -m pip install mace-torch==0.3.14 torch-sim-atomistic==0.3.0 pymatgen

CHEMELEON_RELAX_FORMULA = "NaCl"
CHEMELEON_RELAX_NUM_CANDIDATES = 2
CHEMELEON_RELAX_DEVICE = "cuda"
CHEMELEON_RELAX_MODEL_SIZE = "small" # small, medium
CHEMELEON_RUN_RELAXATION = True

preferred_rows = [row for row in csp_matching_rows if row['formula_target'] == CHEMELEON_RELAX_FORMULA]
if not preferred_rows:
    preferred_rows = [row for row in csp_rows if row['formula_target'] == CHEMELEON_RELAX_FORMULA]
if not preferred_rows:
    raise ValueError(f'No CSP candidates found for {CHEMELEON_RELAX_FORMULA}.')

selected_relax_rows = preferred_rows[:CHEMELEON_RELAX_NUM_CANDIDATES]
selected_relax_atoms = [row['atoms'] for row in selected_relax_rows]
selected_relax_labels = [f"{row['formula_target']} sample {row['sample_id']}" for row in selected_relax_rows]

if not CHEMELEON_RUN_RELAXATION:
    print('Set CHEMELEON_RUN_RELAXATION=True and rerun this cell to relax a small CSP shortlist with MACE + TorchSim.')
else:
    try:
        chemeleon_relaxation = relax_atoms_with_mace(
            selected_relax_atoms,
            device=CHEMELEON_RELAX_DEVICE,
            model_size=CHEMELEON_RELAX_MODEL_SIZE,
        )
    except ImportError as exc:
        print('Optional relaxation dependencies are missing in this Python environment.')
        print('Set CHEMELEON_DISCOVERY_INSTALL=True and rerun the install cell first.')
        print(f'Details: {exc}')
    else:
        chemeleon_relaxed_atoms = chemeleon_relaxation['relaxed_atoms']
        chemeleon_relaxation_rows = build_relaxation_rows(
            selected_relax_atoms,
            chemeleon_relaxed_atoms,
            chemeleon_relaxation['energies'],
            labels=selected_relax_labels,
        )
        render_rank_table(
            'Shortlist after MACE/TorchSim relaxation',
            chemeleon_relaxation_rows,
            ['label', 'formula_before', 'formula_after', 'n_sites', 'energy_eV', 'volume_before', 'volume_after', 'delta_volume'],
        )
        show_before_after_relaxation(
            selected_relax_atoms,
            chemeleon_relaxed_atoms,
            selected_relax_labels,
            f'Chemeleon CSP relaxation shortlist for {CHEMELEON_RELAX_FORMULA}',
            save_path=CHEMELEON_DNG_OUT / f"csp_relax_{CHEMELEON_RELAX_FORMULA.lower()}.png",
        )

try:
    from pymatgen.core import Composition
except Exception as exc:
    Composition = None
    _composition_import_error = exc
else:
    _composition_import_error = None

CHEMELEON_MP_API_KEY = ""
CHEMELEON_RUN_STABILITY = True
CHEMELEON_STABLE_CUTOFF = 0.10

if not CHEMELEON_RUN_STABILITY:
    print('Set CHEMELEON_RUN_STABILITY=True and rerun this cell to compare the relaxed shortlist against the Materials Project phase diagram.')
elif 'chemeleon_relaxed_atoms' not in globals() or 'chemeleon_relaxation' not in globals():
    print('Run the relaxation cell above first.')
elif Composition is None:
    print('Phase-diagram analysis is optional and requires a working pymatgen installation.')
    print('In this Python build that stack is currently unavailable.')
    print(f'Details: {_composition_import_error}')
elif not CHEMELEON_MP_API_KEY:
    print('Provide CHEMELEON_MP_API_KEY or set MP_API_KEY in the environment before rerunning this cell.')
else:
    try:
        chemsys = [element.symbol for element in Composition(CHEMELEON_RELAX_FORMULA).elements]
        mp_entries = fetch_mp_entries_for_chemsys(chemsys, CHEMELEON_MP_API_KEY)
        generated_entries = build_generated_pd_entries(chemeleon_relaxed_atoms, chemeleon_relaxation['energies'])
        stability = summarize_generated_stability(
            mp_entries,
            generated_entries,
            labels=selected_relax_labels,
            stable_cutoff=CHEMELEON_STABLE_CUTOFF,
        )
    except ImportError as exc:
        print('Phase-diagram analysis is optional and requires a working pymatgen installation.')
        print(f'Details: {exc}')
    else:
        render_rank_table(
            'Energy-above-hull triage for the relaxed CSP shortlist',
            stability['rows'],
            ['label', 'formula', 'energy_above_hull_eV_per_atom', 'is_stable_or_close'],
        )
        phase_plot = plot_phase_diagram_with_generated(mp_entries, generated_entries)
        try:
            phase_plot.show()
        except Exception:
            display(phase_plot)

7) Exercises¶

DNG vs CSP: In your own words, what is the difference between DNG and CSP?

Band gap vs formula conditioning: How does MatterGen’s low-vs-high band-gap sweep differ from Chemeleon-DNG’s CSP sweep?

Direct vs indirect evidence: Which CSP plots tell you about conditioning success most directly: formula-match fraction, volume, or n_sites?

Pick the right tool: When would you choose Chemeleon-DNG over MatterGen?

Discovery funnel: Suppose one CSP formula looks promising. What is the next workflow after generation in this notebook?

Why phase diagrams here? Why is the optional phase-diagram analysis cleaner in the Chemeleon CSP notebook than in the MatterGen notebook?

9) Troubleshooting¶

If chemeleon_dng_repo/ exists but has no pyproject.toml, rerun the setup cell. The setup checks for incomplete clones, moves them aside, and reclones the repo cleanly.
The Python environment lives in tempfile.gettempdir()/chemeleon-dng-venv rather than inside the repo. That avoids incomplete torch and numpy installs on mounted filesystems such as WSL/Colab paths.
The notebook anchors itself to the repo root, so outputs land inside notebooks/05-generative/ for this tutorial repo rather than the parent directory.
The first DNG or CSP run downloads about $523\,\mathrm{MB}$ of checkpoints into chemeleon_dng_repo/ckpts/. If that download is interrupted, rerun the first sampling cell.
The Chemeleon subprocess forces MPLBACKEND='Agg' and uses a writable temporary Matplotlib cache, so it does not inherit Jupyter’s inline backend and fail during import.
The sampling helper reuses existing CIFs by default when the output directory already contains the expected number of structures. If you want a fully fresh run, delete the relevant output directory first.
CHEMELEON_DNG_DEMO_TIMESTEPS controls the notebook-speed reverse process. Increase it if you want higher-fidelity samples and can tolerate longer runtimes.

10) Next steps¶

In MatterGen, try a second conditioned checkpoint such as chemical_system or space_group and repeat the same sweep-plus-screening workflow.
In Chemeleon-DNG, expand the CSP formula list and compare how the volume / atom-count clouds move as the chemistry changes.
Increase the DNG atom-count schedules from the tiny tutorial values here to broader small-cell and large-cell sweeps once you move to GPU.
Build one shared post-processing script that ingests MatterGen and Chemeleon outputs together, then ranks candidates by the same screening criteria.
