try:
    import torch
    print("successfully imported torch")
    print(torch.__version__)
except ImportError:
    !! pip install torch torchvision torchaudio --user --index-url https://download.pytorch.org/whl/cpu
    print("completed installing torch")

try:
    import numpy as np
    print("successfully imported numpy")
    print(np.__version__)
except ImportError:
    !! pip install numpy --user --upgrade
    print("completed installing numpy")

try:
    from matplotlib import pyplot as plt
    print("successfully imported matplotlib")
except ImportError:
    !! pip install matplotlib --user --upgrade
    print("completed installing matplotlib")

!! pip install aenet-gpr --user --upgrade
print("completed installing aenet-gpr")

! pip show aenet-gpr

import os, sys, site, glob
sys.path.append(site.USER_SITE)

import aenet_gpr
print(aenet_gpr.__version__)

from IPython.display import Image

try:
    import ase.io
    print("successfully imported ase")
except ImportError:
    !! pip install ase --user --upgrade
    print("completed installing ASE")

    import ase.io
    print("successfully imported ase")

import os.path

! rm -rf 1_H2
! mkdir 1_H2

if os.path.isfile("../example/1_H2/train_set.zip"):
    ! unzip -oq ../example/1_H2/train_set.zip -d ./1_H2/
    print("number of train data:")
    ! find ./1_H2/train_set/ -type f | wc -l
else:
    ! wget https://github.com/atomisticnet/aenet-gpr/raw/refs/heads/main/example/1_H2/train_set.zip
    ! unzip -oq train_set.zip -d ./1_H2/
    ! rm train_set.zip
    print("number of train data:")
    ! find ./1_H2/train_set/ -type f | wc -l

if os.path.isfile("../example/1_H2/test_set.zip"):
    ! unzip -oq ../example/1_H2/test_set.zip -d ./1_H2/
    print("number of test data:")
    ! find ./1_H2/test_set/ -type f | wc -l
else:
    ! wget https://github.com/atomisticnet/aenet-gpr/raw/refs/heads/main/example/1_H2/test_set.zip
    ! unzip -oq test_set.zip -d ./1_H2/
    ! rm test_set.zip
    print("number of test data:")
    ! find ./1_H2/test_set/ -type f | wc -l

atoms = ase.io.read("./1_H2/test_set/file_0000.xsf")
ase.io.write('H2.png', atoms)
Image("H2.png")

! rm -f train.in

if os.path.isfile("../example/1_H2/train.in"):
    ! cp ../example/1_H2/train.in .
else:
    ! wget https://github.com/atomisticnet/aenet-gpr/raw/refs/heads/main/example/1_H2/train.in

! cat train.in

! python -m aenet_gpr train.in

from aenet_gpr.util import ReferenceData

train_xsf_files = glob.glob("./1_H2/train_set/file_*")
train_xsf_files.sort()

train_data = ReferenceData(structure_files=train_xsf_files, file_format='xsf')
train_data.set_data()

energy_test_gpr = np.load("./energy_test_gpr.npy")
energy_test_reference = np.load("./energy_test_reference.npy")

force_test_gpr = np.load("./force_test_gpr.npy")
force_test_reference = np.load("./force_test_reference.npy")

unc_e_test_gpr = np.load("./unc_e_test_gpr.npy")
unc_f_test_gpr = np.load("./unc_f_test_gpr.npy")

n_test = 200
d_test = np.linspace(0.95, 2.05, n_test)  # H-H bond distance

n_train = 7
d_train = np.linspace(1.0, 2.0, n_train)  # H-H bond distance

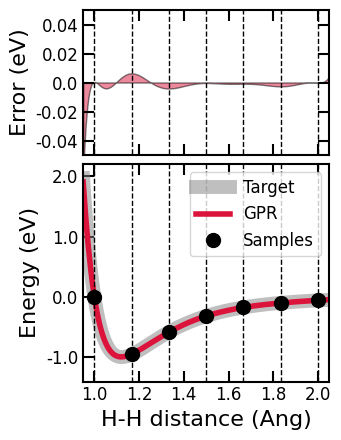

fig = plt.figure(figsize=(3.5, 4.5))
ax2, ax3 = fig.subplots(2, 1, height_ratios=[1, 1.5], sharex=False, sharey=False)

font_x = {'size': 16, 'color': 'black'}
font_y = {'size': 16, 'color': 'black'}
font_tick = {'size': 12, 'color': 'black'}


# The second plot
ax2.fill_between(d_test, np.subtract(energy_test_gpr, energy_test_reference), 0, color='crimson', alpha=0.5, edgecolor='black')
ax2.vlines(d_train, ymin=-100, ymax=100, color='black', linestyle='--', linewidth=1)

ax2.set_xlim([0.95, 2.05])
x_labels = [round(label, 2) for label in ax2.get_xticks()]
ax2.set_xticks(x_labels)
ax2.set_xlim([0.95, 2.05])
ax2.set_xticklabels(x_labels, fontdict=font_tick)

ax2.set_ylabel("Error (eV)", fontdict=font_y)
ax2.set_ylim([-0.05, 0.05])
y_labels = [round(label, 2) for label in ax2.get_yticks()]
y_labels = [-0.04, -0.02, 0.0, 0.02, 0.04]
ax2.set_yticks(y_labels)
ax2.set_ylim([-0.05, 0.05])
ax2.set_yticklabels(y_labels, fontdict=font_tick)

[x.set_linewidth(1.5) for x in ax2.spines.values()]
ax2.tick_params(bottom=True, top=True, left=True, right=True)
ax2.tick_params(labelbottom=False, labeltop=False, labelleft=True, labelright=False)
ax2.tick_params(direction='in', length=8, width=1.5)


# The third plot
ax3.plot(d_test, energy_test_reference, '-', label='Target', color='gray', alpha=0.5, linewidth=10)
ax3.plot(d_test, energy_test_gpr, '-', label='GPR', color='crimson', linewidth=4)
ax3.vlines(d_train, ymin=-100, ymax=100, color='black', linestyle='--', linewidth=1)
ax3.plot(d_train, train_data.energy, linestyle='', marker='o', markersize=10, color='black', label='Samples')

ax3.set_xlabel('H-H distance (Ang)', fontdict=font_x)
ax3.set_xlim(0.95, 2.05)
x_labels = [round(label, 2) for label in ax3.get_xticks()]
ax3.set_xticks(x_labels)
ax3.set_xticklabels(x_labels, fontdict=font_tick)
ax3.set_xlim(0.95, 2.05)

ax3.set_ylabel('Energy (eV)', fontdict=font_y)
ax3.set_ylim(-1.4, 2.2)
y_labels = [round(label, 2) for label in ax3.get_yticks()]
# y_labels = [-1.0, -0.5, 0.0, 0.5, 1.0, 1.5, 2.0]
ax3.set_yticks(y_labels)
ax3.set_yticklabels(y_labels, fontdict=font_tick)
ax3.set_ylim(-1.4, 2.2)

ax3.legend(loc='upper right', fontsize=12, ncol=1, frameon=True)
[x.set_linewidth(1.5) for x in ax3.spines.values()]
ax3.tick_params(bottom=True, top=True, left=True, right=False)
ax3.tick_params(labelbottom=True, labeltop=False, labelleft=True, labelright=False)
ax3.tick_params(direction='in', length=8, width=1.5)

fig.tight_layout()
plt.subplots_adjust(hspace=0.05, wspace=0.05)
plt.show()

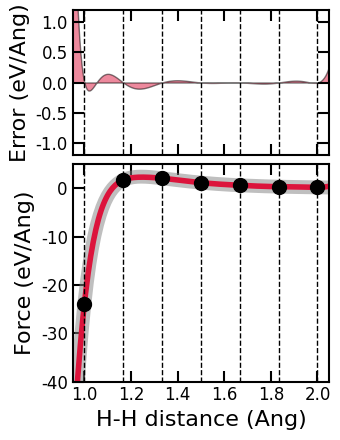

fig = plt.figure(figsize=(3.5, 4.5))
ax2, ax3 = fig.subplots(2, 1, height_ratios=[1, 1.5], sharex=False, sharey=False)

font_x = {'size': 16, 'color': 'black'}
font_y = {'size': 16, 'color': 'black'}
font_tick = {'size': 12, 'color': 'black'}


# The second plot
ax2.fill_between(d_test, np.subtract(force_test_gpr[:, 0, 0], force_test_reference[:, 0, 0]), 0, color='crimson', alpha=0.5, edgecolor='black')
ax2.vlines(d_train, ymin=-100, ymax=100, color='black', linestyle='--', linewidth=1)

ax2.set_xlim([0.95, 2.05])
x_labels = [round(label, 2) for label in ax2.get_xticks()]
ax2.set_xticks(x_labels)
ax2.set_xlim([0.95, 2.05])
ax2.set_xticklabels(x_labels, fontdict=font_tick)

ax2.set_ylabel("Error (eV/Ang)", fontdict=font_y)
ax2.set_ylim([-1.2, 1.2])
y_labels = [round(label, 2) for label in ax2.get_yticks()]
y_labels = [-1.0, -0.5, 0.0, 0.5, 1.0]
ax2.set_yticks(y_labels)
ax2.set_ylim([-1.2, 1.2])
ax2.set_yticklabels(y_labels, fontdict=font_tick)

[x.set_linewidth(1.5) for x in ax2.spines.values()]
ax2.tick_params(bottom=True, top=True, left=True, right=True)
ax2.tick_params(labelbottom=False, labeltop=False, labelleft=True, labelright=False)
ax2.tick_params(direction='in', length=8, width=1.5)


# The third plot
ax3.plot(d_test, force_test_reference[:, 0, 0], '-', label='Target', color='gray', alpha=0.5, linewidth=10)
ax3.plot(d_test, force_test_gpr[:, 0, 0], '-', label='GPR', color='crimson', linewidth=4)
ax3.vlines(d_train, ymin=-100, ymax=100, color='black', linestyle='--', linewidth=1)
ax3.plot(d_train, train_data.force[:, 0, 0], linestyle='', marker='o', markersize=10, color='black', label='Samples')

ax3.set_xlabel('H-H distance (Ang)', fontdict=font_x)
ax3.set_xlim(0.95, 2.05)
x_labels = [round(label, 2) for label in ax3.get_xticks()]
ax3.set_xticks(x_labels)
ax3.set_xticklabels(x_labels, fontdict=font_tick)
ax3.set_xlim(0.95, 2.05)

ax3.set_ylabel('Force (eV/Ang)', fontdict=font_y)
ax3.set_ylim(-40, 5)
y_labels = [int(label) for label in ax3.get_yticks()]
# y_labels = [-40, -30, -20, -10, 0]
ax3.set_yticks(y_labels)
ax3.set_yticklabels(y_labels, fontdict=font_tick)
ax3.set_ylim(-40, 5)

# ax3.legend(loc='lower right', fontsize=12, ncol=1, frameon=True)
[x.set_linewidth(1.5) for x in ax3.spines.values()]
ax3.tick_params(bottom=True, top=True, left=True, right=False)
ax3.tick_params(labelbottom=True, labeltop=False, labelleft=True, labelright=False)
ax3.tick_params(direction='in', length=8, width=1.5)

fig.tight_layout()
plt.subplots_adjust(hspace=0.05, wspace=0.05)
plt.show()

import numpy as np
import matplotlib.pyplot as plt
from scipy.stats import pearsonr

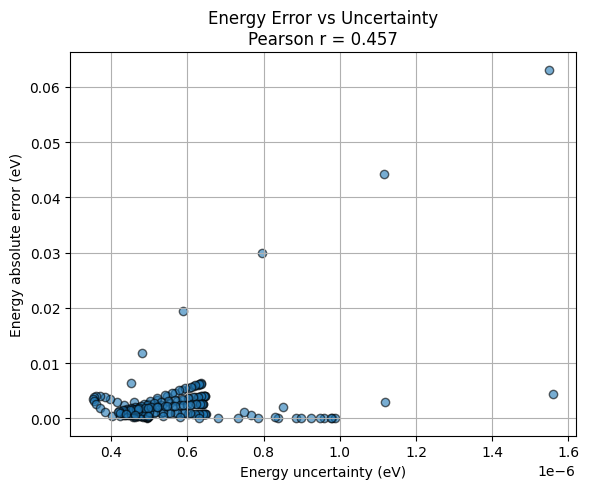

# --- Energy error vs uncertainty ---
energy_error = np.abs(energy_test_gpr - energy_test_reference)
unc_e = unc_e_test_gpr

r_energy, _ = pearsonr(energy_error, unc_e)

plt.figure(figsize=(6, 5))
plt.scatter(unc_e, energy_error, alpha=0.6, edgecolors='k')
plt.xlabel("Energy uncertainty (eV)")
plt.ylabel("Energy absolute error (eV)")
plt.title(f"Energy Error vs Uncertainty\nPearson r = {r_energy:.3f}")
plt.grid(True)
plt.tight_layout()
plt.show()

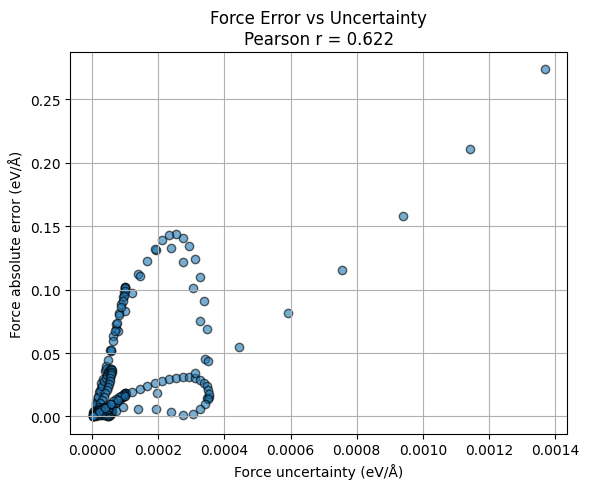

# --- Force error vs uncertainty ---
force_error = np.abs(force_test_gpr[10:, 0, 0] - force_test_reference[10:, 0, 0])
unc_f = unc_f_test_gpr[10:, 0, 0]

r_force, _ = pearsonr(force_error, unc_f)

plt.figure(figsize=(6, 5))
plt.scatter(unc_f, force_error, alpha=0.6, edgecolors='k')
plt.xlabel("Force uncertainty (eV/Å)")
plt.ylabel("Force absolute error (eV/Å)")
plt.title(f"Force Error vs Uncertainty\nPearson r = {r_force:.3f}")
plt.grid(True)
plt.tight_layout()
plt.show()
